CNCTOPBAOS K12-100mm CNC Router Milling Machine Rotational Axis A 4th Axis Rotary Table 100mm 4 Jaw Chuck Dividing Head,MT2 65mm Tailstock Reducing
Item #:
72338749
XCD 923
Price Details
Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )
*All items will import from US
In stock
Imported from USA store
QTY:
Only 19 items left in stock.
Order now and get it around Friday, July 24
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners

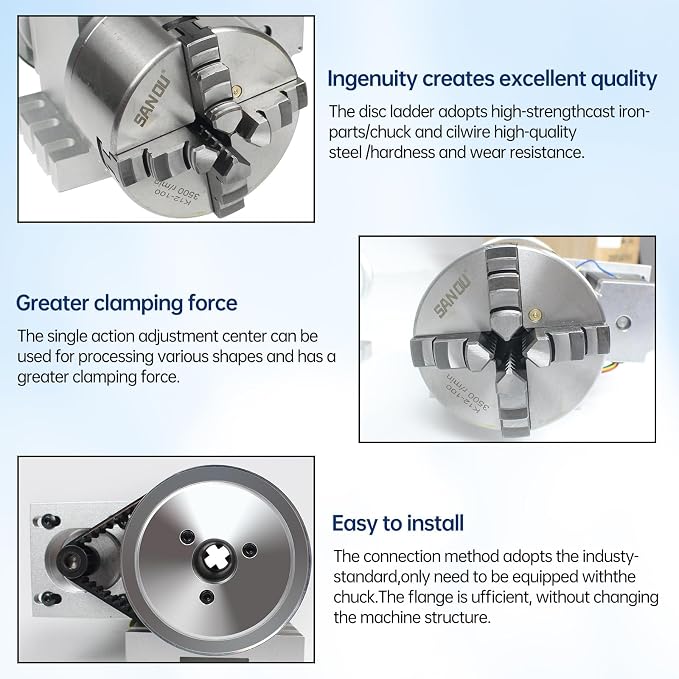

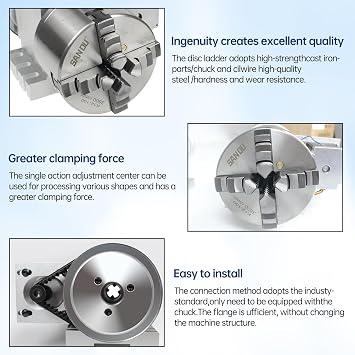

Rust proof coating process, stable 4 jaw chuck structure, fine workmanship, solid and practical jaw, excellent process to maximize service life.
Fast
Shipping
Free
Return*
Secure Packaging
100% Original Products
PCI DSS Compliance
ISO 27001 Certified
What Stands Out
Precision Engineering
The CNCTOPBAOS K12 features high-quality construction and precision engineering, ensuring accuracy in all milling and engraving tasks, surpassing competitors in reliability and craftsmanship.
Versatile Applications
Designed for various materials and projects, this 4th axis rotary table allows users to perform intricate designs, significantly widening the scope of CNC machining and engraving capabilities.
User-Friendly Setup
With an intuitive design and easy installation process, this CNC router reduces setup time, enabling users to focus on their creativity and projects, enhancing overall productivity.
Product Details

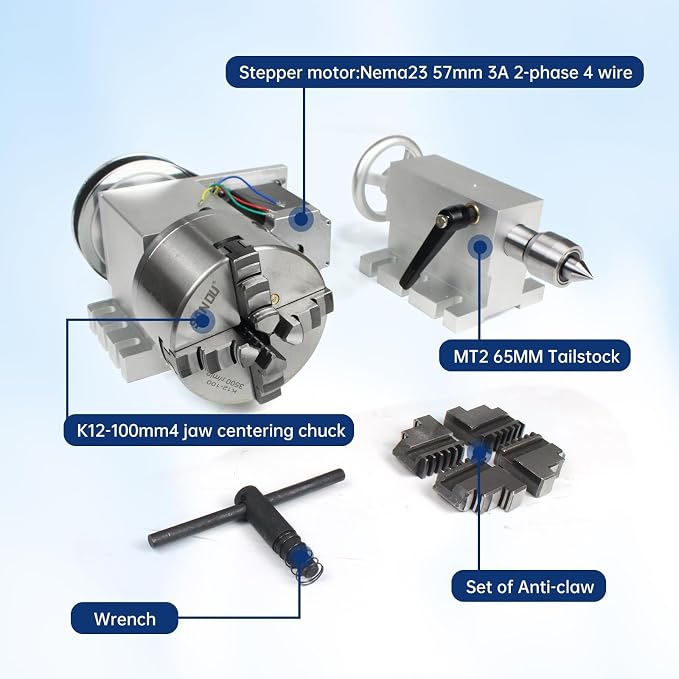

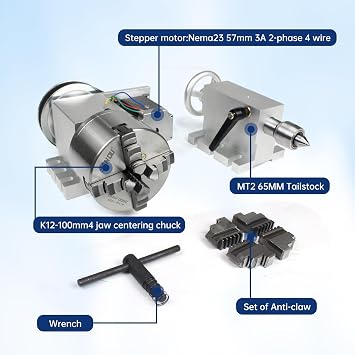

- Specifications of 4th Axis: Center height: 65 mm/2.56 inch; Total height:; 115 mm/4.5 inch; Angle: 0.3°/step ; Reduction ratio: 6:1; Base Material: Aluminum alloy; Size: 210x168x115 mm/8.3x6.6x4.5 inch; Weight: 7.9 KG/17.4 LB; Inner through hole diameter/shaft hollow diameter is 22 mm/0.86 inch; Output shaft diameter:30 mm/1.18 inch
- Nema23 Stepper Motor: Phase: 2 Phase; Type: Hybrid; Step Angle: 1.8°; Current: 3.0A; Holding torque: 270oz-in/1.8Nm; Shat diameter: 8mm; 4 Lead Wires: A+ to Red ; A- to Green ; B+ to Yellow ; B- to Blue; Motor Size: 57x57x76 mm
- Specifications of MT2 Tailstock: Morse Taper 2 Live Center Movable MT2 Tailstock; Center Height: 65 mm/2.56 inch; Expansion stroke: 45 mm1.77 inch; Stretch distance: 50 mm/1.97 inch; Top tip: Activity type; With Axial locking wrench for tailstock; Exquisite workmanship,Durable,Stable performance,Sturdy and Wear-resistant; Weight: 2.5 KG/5.5 LB

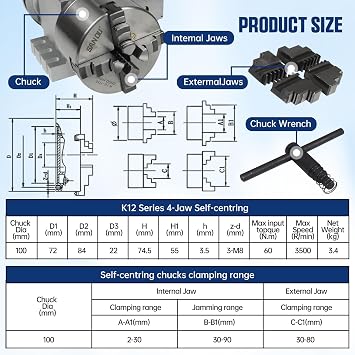

- Chuck Type: K12-100 4-Jaw self-centering chuck; Diameter:100mm; Max input torque: 60 N.m; Max Speed: 3500 R/min; External jaw clamping range: 30-80 mm/1.18-3.15 inches.; Internal jaw clamping range: 2-30 mm/0.08-1.18 inches; Internal jaw jamming range: 30-90 mm/1.18-3.54 inches; With four Anti-claw and Wrench
- Advantages: Rust proof coating process,stable 4 jaw chuck structure,fine workmanship,solid and practical jaw, excellent process to maximize service life;Application: The fourth axis can be used for three-dimensional processing of cylinders, bends and circles. The fourth axis engraving machine can be used for engraving spirals, scars etc
| Brand Name | CNCTOPBAOS |
| Included Components | 4th axis K12 100mm, stepper motor, 4 jaw chuck, 65mm Tailstock |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| UPC | 785004502711 |
| Manufacturer Part Number | S23 |
| Model Number | S23 |
| Compatible Devices | Milling Machine |
| Thread Size | K12 |
| Capacity | 10 centimeters |
| Lock Type | Self Centering |
| Handle Type | hand-tightened |
| Item Diameter | 100 Millimeters |
| Item Weight | 10.23 Kilograms |
| Material Type | Aluminum |
| Brand | CNCTOPBAOS |
| Material | Aluminum |
Who Should Buy?
-
CNC Machinists
Ideal for professionals seeking to enhance their CNC machining capabilities with a rotary axis for complex designs.
-
Hobbyists
Great for DIY enthusiasts looking to expand their CNC router functionality for advanced engraving and shaping projects.
-
Small Businesses
Suitable for small manufacturing shops that need a compact, efficient solution for custom parts and prototypes.
-
Beginners
Not ideal for novice users unfamiliar with CNC machining, as it may require advanced setup and operation skills.
-
Larger Projects
Limited by its size, this product may not be suitable for larger scale production or big workpieces.
-
Budget Consumers
Not recommended for those on a tight budget due to its specialized features and complexity that may justify higher costs.
Product Description
Have any Query? Chat with us
Customer Questions & Answers
-
Question:
What is the CNCTOPBAOS K12-100mm CNC Router used for?
Answer: The CNCTOPBAOS K12-100mm CNC Router is designed for precision milling and engraving. It excels in applications requiring detailed cutting, shaping, and machining of materials like wood, plastics, and soft metals. The incorporation of a 4th axis rotary table allows users to perform more complex operations, such as 3D carving and contouring. This versatility makes it ideal for hobbyists, artists, and production environments where intricate designs are desired. -
Question:
What can I do with the 4 Jaw Chuck on the CNC Router?
Answer: The 4 Jaw Chuck on the CNC Router provides a secure and adjustable grip for various workpieces. It allows for precise centering of irregularly shaped components and holds them firmly during operation. This is particularly useful for milling operations where part stability is crucial. Whether you are working on custom parts or standard shapes, the 4 Jaw Chuck enables greater flexibility in your machining tasks. -
Question:
How does the MT2 Tailstock benefit the CNC milling process?
Answer: The MT2 Tailstock adds significant support during milling processes by stabilizing the material being machined. It aids in aligning the workpiece properly while also providing an additional point of support which reduces vibrations. The tailstock is particularly beneficial for longer or larger materials, ensuring accuracy and a smoother finish during operations on the CNC Router. -
Question:
What is the maximum diameter for workpieces on this CNC Router?
Answer: The CNCTOPBAOS K12-100mm CNC Router is equipped to handle workpieces with a diameter of up to 100mm thanks to its rotary table configuration. This feature enables users to work on various materials and projects effectively, including cylindrical and larger flat components. Perfect for both small and medium-scale machining tasks, it enhances your capability to tackle diverse projects. -
Question:
Can I use the CNCTOPBAOS K12-100mm for educational purposes?
Answer: Absolutely! The CNCTOPBAOS K12-100mm CNC Router serves as an excellent educational tool for learning advanced machining technology. Its capabilities allow students and enthusiasts to grasp practical skills in CNC programming, material handling, and precision machining. Educational institutions can utilize this machine for workshops and hands-on training sessions, preparing future engineers and designers. -
Question:
What software options are compatible with this CNC Router?
Answer: The CNCTOPBAOS K12-100mm CNC Router is compatible with various popular CNC software, including Mach3, GRBL, and Fusion 360. These software options provide intuitive interfaces for programming and controlling the router, enabling users to design and execute their milling projects effectively. This broad compatibility allows you to select the software that best fits your skill level and project requirements. -
Question:
Is the installation process for this CNC Router complicated?
Answer: The installation process for the CNCTOPBAOS K12-100mm CNC Router is designed to be straightforward, with comprehensive instructions provided. Users will typically require basic tools to assemble the parts and connect the machine to their computer system. Even those new to CNC machinery can follow the steps to set up their router, making it accessible for both experienced machinists and beginners alike. -
Question:
What materials can I use with the CNCTOPBAOS K12-100mm CNC Router?
Answer: This CNC Router is versatile and can handle a variety of materials such as wood, acrylic, aluminum, and soft metals. The router's settings can be adjusted according to the material being used, allowing for optimal cutting speeds and depths. This makes it a fantastic choice for crafting custom items, prototypes, and intricate designs across different material types. -
Question:
How do I maintain the CNCTOPBAOS K12-100mm CNC Router?
Answer: Regular maintenance of the CNCTOPBAOS K12-100mm CNC Router includes cleaning the workspace, lubricating moving parts, and checking electrical connections. It’s essential to use appropriate cleaning agents to avoid damaging sensitive components. Implementing routine maintenance will prolong the machine's lifespan and enhance performance, ensuring consistent quality in your machining tasks. -
Question:
Where can I buy the CNCTOPBAOS K12-100mm CNC Router in Anguilla?
Answer: You can purchase the CNCTOPBAOS K12-100mm CNC Router at Ubuy. Ubuy provides a user-friendly shopping experience, featuring detailed product descriptions, reviews, and competitive offers. Whether you're a hobbyist or a professional seeking precision machinery, Ubuy is a reliable source for acquiring this CNC Router in Anguilla.
